BTCUSDT trade review chart

Turn your BTCUSDT trades into an entry-and-exit review chart.

This page is for Bitcoin (BTCUSDT) traders on Binance who want their real fills on the chart instead of buried in the Orders table. Export your BTCUSDT trade history, map the fill rows into KLinePic's CSV schema, and render a shareable review image with entry/exit (B/S) markers, holding window, return, max run-up, and max drawdown.

Open uploader Download crypto CSV template Binance trade history chart

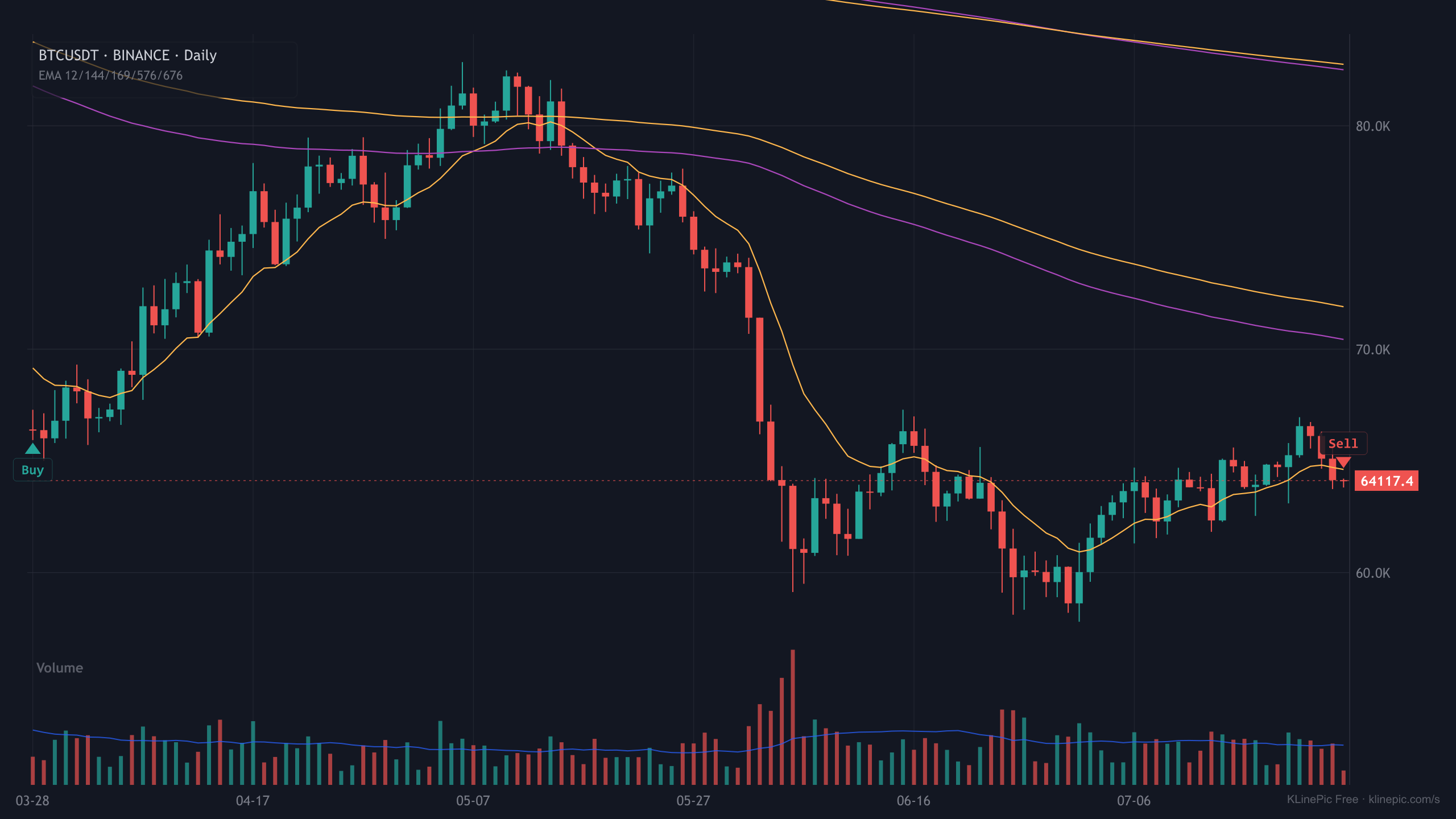

BTCUSDT trade review chart with buy and sell markers on a daily K-line — BTCUSDT daily K-line from Binance public market data, snapshot as of 2026-07-25 (2026-03-28 → 2026-07-25, 120 bars). The B/S markers show the sample round-trip below; your uploaded fills replace them with your own.

How to get BTCUSDT fills from Binance

Binance exports spot and futures history separately. Follow the official help articles for spot trade history and USDⓈ-M / COIN-M futures order history.

Spot BTCUSDT fills: Orders > Spot Order > Trade History > Export Trade History. A statement covers up to a year from a chosen date; download promptly (the link is stored seven days).
Futures BTCUSDT fills: Orders > USDⓈ-M Futures Order > Order History, then the Export icon. Keep executed fills only — drop canceled or unfilled orders.
Binance shows spot history in UTC+0; keep that in mind when you write timestamps.

For the full walkthrough see the Binance trade history chart guide.

Map your BTCUSDT export to KLinePic fields

KLinePic reads a fixed schema: trade_id, symbol, event_type, position_side, time, price, quantity, fee, note (see the data protocol). Extra columns are ignored on import and listed back to you.

KLinePic field	Your Binance export column	Notes
trade_id	Usually none — create your own	One stable id per round-trip trade; entry and exit fills share it.
symbol	Pair / market column	Use `BTCUSDT` exactly so markers land on the matching K-line.
event_type	Side / direction column	Normalize to lowercase `buy` or `sell`.
position_side	Futures direction column, if present	Spot can default to `long`; hedge-mode futures need explicit `long` / `short`.
time	Fill / trade time column	Binance spot history is UTC+0; write explicit offsets like `+00:00`.
price	Executed price column	Use the executed fill price, not the order's limit price.
quantity	Executed base amount	Base units of BTC, not the USDT quote total.
fee	Fee amount column	Optional, but useful for honest net-return journaling.
note	Fee currency column	Optional free text such as `fee_asset=USDT`.

Target CSV shape for BTCUSDT

A complete BTCUSDT round-trip — one buy, one sell, same trade_id — looks like this after mapping. The prices below are the real 120-day window low and high for illustration:

trade_id,symbol,event_type,position_side,time,price,quantity,fee,note
BTC-001,BTCUSDT,buy,long,2026-03-28T00:00:00+00:00,66377.03,0.0452,3.0002,fee_asset=USDT
BTC-001,BTCUSDT,sell,long,2026-07-25T23:59:00+00:00,64117.37,0.0452,2.8981,fee_asset=USDT

Scaling in or out simply adds more rows with the same id. The crypto template ships this exact header.

BTCUSDT facts

Field	Value
Market	Crypto · Binance spot / USDⓈ-M futures
Symbol format	Trading pair, e.g. `BTCUSDT`
Resolved instrument	`BTCUSDT` (Binance)
Timezone	UTC+00:00
Date-only buy / sell time	00:00:00 / 23:59:00
Window (120 daily bars)	2026-03-28 → 2026-07-25
Window range (low–high)	57,800.19 – 82,850.00 USDT
Last close · window change (as of 2026-07-25)	64,117.37 USDT · -3.40%

BTCUSDT trading profile (2026-03-28 → 2026-07-25)

Why this matters for a review chart: volatility and daily range decide how much room the BTCUSDT candles need before your buy and sell markers stop overlapping, and the exchange filters below are exactly the precision your CSV has to respect — a quantity that is not a multiple of the step size is a fill Binance never actually gave you.

Metric (120 daily bars)	Value
Annualised realised volatility	35.5%
Average daily range (high→low)	3.06%
Days that closed beyond ±5%	2 of 120 (1.7%)
Deepest drawdown inside the window	-28.7%
Best single day	+5.2% on 2026-04-13
Worst single day	-6.51% on 2026-06-02
Price tick size	`0.01` — the smallest price increment your `price` column can carry
Quantity step size	`0.00001` — your `quantity` column must be a multiple of this
Minimum order value	5 USDT

FAQ

How volatile is BTCUSDT, and does that change how I read the review chart?

Over the 120 daily bars to 2026-07-25, BTCUSDT ran about 35.5% annualised realised volatility with an average daily high-to-low range of 3.06%, and 2 days closed beyond ±5%. The deepest drawdown inside that window was -28.7%. The wider the daily range, the further apart your entry and exit markers sit, so a review chart for BTCUSDT usually reads best over a window that contains the whole holding period rather than a few sessions.

What price and quantity precision does BTCUSDT need in the CSV?

Binance enforces a 0.01 price tick and a 0.00001 quantity step on BTCUSDT, with a 5 USDT minimum order value. Keep your price and quantity columns at that precision: rounding a BTCUSDT fill to a coarser number silently moves the marker off the price it actually filled at.

How do I turn my BTCUSDT trades into a chart?

Export your BTCUSDT fills from Binance, map them into KLinePic's CSV fields (trade_id, symbol, event_type, position_side, time, price, quantity, fee, note), then upload or paste the CSV to render. No account is needed.

Does this work for BTCUSDT futures as well as spot?

Yes. USDⓈ-M BTCUSDT fills render the same way as spot once each row has symbol, side, time, price, and size. Futures history is a separate Binance export, and derivatives rows should carry an explicit position_side.

What time zone should BTCUSDT timestamps use?

Binance shows spot trade history in UTC+0. Write that into the time column as an explicit offset such as 2026-03-28T00:00:00+00:00 so markers land on the correct BTCUSDT candles.

Is the BTCUSDT chart on this page real market data?

Yes. The preview is a BTCUSDT daily K-line from Binance public market data over 2026-03-28 to 2026-07-25 (120 bars), window range 57,800.19–82,850.00 USDT. It is a static snapshot generated on 2026-07-25, not a live quote. Your uploaded fills replace the sample buy/sell markers with your own.

Do I need a Binance API key to chart BTCUSDT?

No. The statement download is enough; KLinePic renders from an uploaded or pasted file. For automation there is a documented Agent API and a CSV/JSON data protocol.

Can I render many BTCUSDT trades at once?

Yes. Batch rendering is supported, so a month of BTCUSDT trades becomes a full set of review images in one pass, via the web UI or the documented Agent API.
